The Hydraulic Floor Crane truly shows that small size can make a big difference. Electric lifting, hydraulic lifting, charging and plug-in dual-use. Strong power and small working space.
Model Type | CSEC-1200 | CSEC-1200A | CSEC-700 | CSEC-900R |
Horizontal Reach | 1280+610+610mm | 1280+610+610mm | 1220+610+610mm | 1280mm+610mm+610mm |
Load Capacity | 1200kg | 1200kg(1280mm) | 700kg(1220mm) | 900kg(1280mm) |
Load Capacity (stage 1) | 600kg(1280~1890mm) | 600kg(1280~1890mm) | 400kg(1220~1830mm) | 450kg(1280~1890mm) |
Load Capacity (stage 2) | 300kg(1890~2500mm) | 300kg(1890~2500mm) | 200kg(1890~2440mm) | 250KG(1890~2500mm) |
Max Lifting Height | 3570mm | 3540mm | 3560mm | 3180mm |
Min Lifting Height | 960mm | 935mm | 950mm | 1410mm |
Retracted size(W*L*H) | 1920*760*1600mm | 1865*1490*1570mm | 2595*760*1580mm | 2000*1854*1550mm |
Arm Electric Rotation | / | / | / | 120°left/right |
Details Images:
● The main boom and the telescopic boom can be folded for easy transportation and storage. High-quality imported oil cylinders are used, which are safe and durable.
● Electric lifting, electric telescopic, hand-pulled walking, and optional electric walking. The main arm can be equipped with a 120° rotatable structure design. More flexible and changeable operation.
● Heavy-duty design hook, suitable for working with a variety of spreaders, and equipped with a snap lock to prevent the hanging objects from falling off, making it safer.
● The electric telescopic arm is designed with an auxiliary roller skating device, which makes the boom more stable and smoother when it is telescopic.
● High-quality hydraulic cylinder, good sealing performance, effectively avoid leakage, and make the cargo lift more stable and powerful.
● The console is simple and elegant, integrating the power switch, power display meter, emergency button, lifting push rod, and boom telescopic push rod, which is convenient for operation.

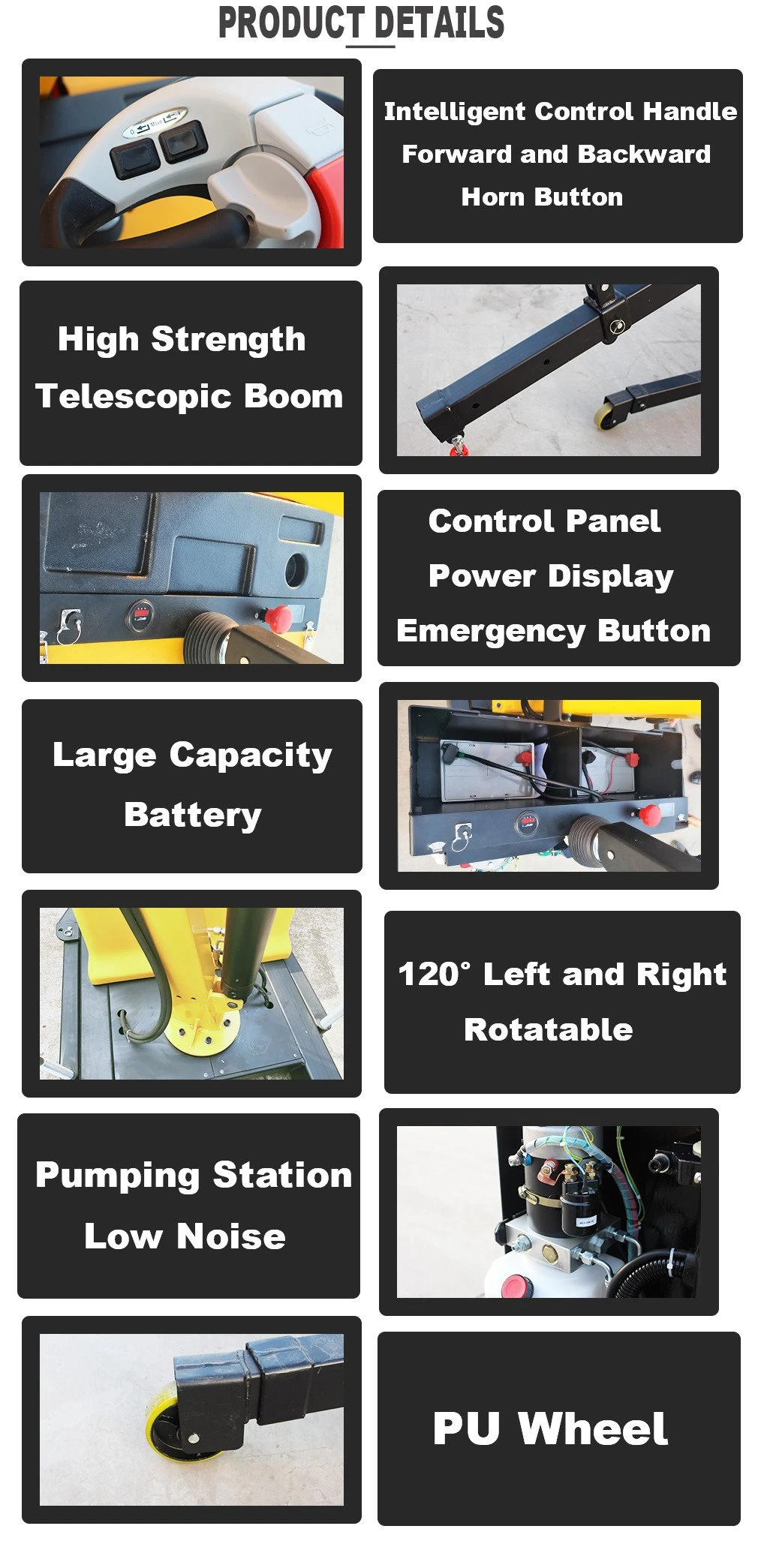

More Details:
Real Order
